Penetrating waterproofing mixture based on special cements and additives
Scope:
• Reservoirs, pools and drinking water tanks
• Reinforced concrete rings of wells
• Pools and tanks, cellars and basements
• Infrastructure facilities
• Walls of basements or underground structures
• Capillary cut-off in front of brickwork
• In engineering structures such as subways, tunnels, dams
• Basements, tunnels, elevator shafts
Advantages:
- penetrates deeply into concrete substrates
- waterproofing for negative water pressure
- resistant to negative and positive water pressure
- can be applied by hand or by spraying
Instructions for use:

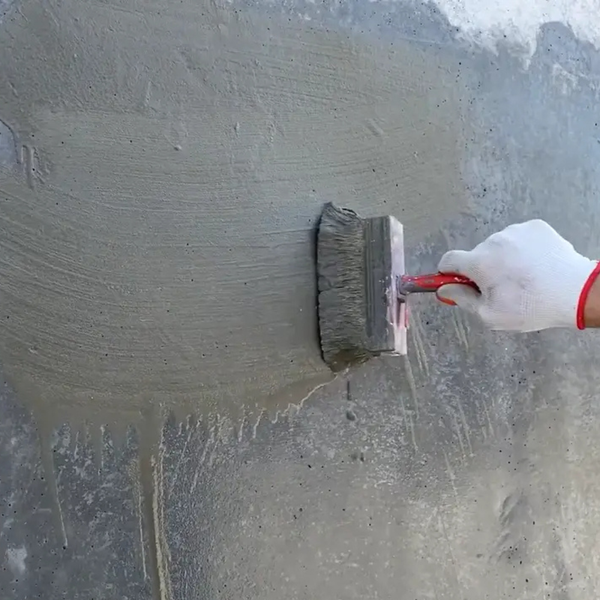

1. Brush application. The concrete surface is moistened and soaked with water. The surface can be damp, but not wet. If there is active leakage, it must be stopped with TEKNOPLUG . The prepared mixture is applied to the surface with a brush in 2-3 layers. It can be applied with a stiff bristle brush or by mechanical spraying. The layers should be applied perpendicular to each other. The waiting time between layers is maintained so that the previous layer does not stick to the fingers.
2. Spraying. TEKNOMER 100 is sprayed onto the prepared concrete surface in an even layer.

Usage Notes / Limitations:
- Do not use on surfaces made of wood, chipboard, MDF, plywood, PVC and metal.
- Use gloves, a mask and goggles when working.
- Use recommended mixing ratios
- After applying the solution, the surface must be protected from adverse weather conditions, such as direct sunlight, strong wind, high air temperature (above + 35 °C), rain and frost.
- Tools and equipment used should be washed with warm water immediately after use.
FEATURES
| Appearance | Gray powder |
| Shelf life | 12 months in closed, undamaged packaging in dry conditions |
| Packaging | 20 kg bag |
| Application temperature | (+5°C) - (+35°C) |
| Relationship with water | 6-7 l water / 20 kg dry material |
| Workability retention time | 20 min |
| Time to full strength gain | 5 days |
| Adhesion to concrete | 1.0 N/mm2 |
| Hydrophobicity | 7 Bar (positive and negative pressure) |
| Capillary water absorption | s 0.1 kg/m2 |
| Vapor permeability | Sd < 5 (Sd: equivalent to an air layer of similar thickness) |
| Operating temperature range | (-25°C) - (+80°C) |
| Harmful substances (EN 12004) | See Product Safety Data Sheet |
| Flammability class | A1 |
Cost table
| Teknomer 100 | Specific gravity kg/l | Consumption of dry product kg/m2 (two layers) | Water (liters) |
| 20 kg bag | 1.98 | ~ 2 | 6-7 |
