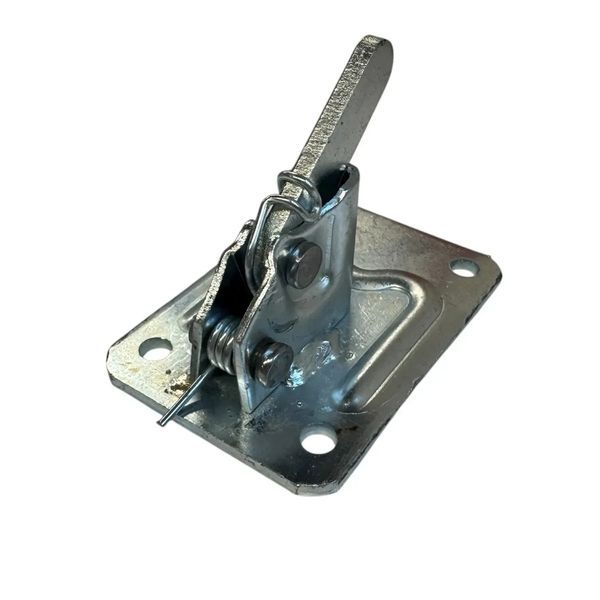

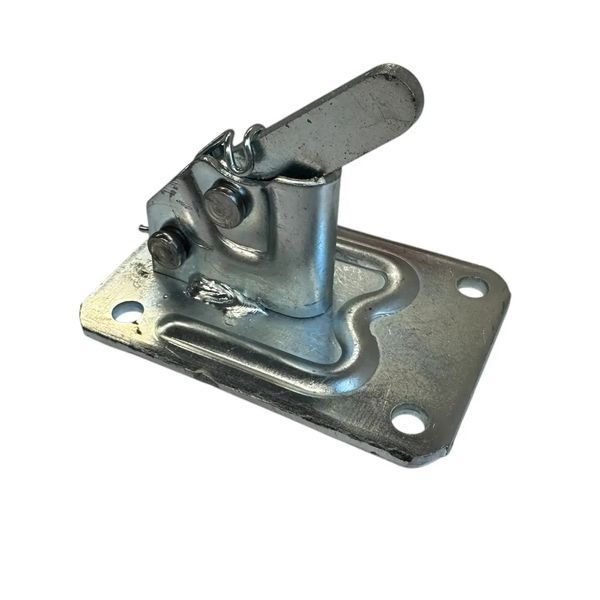

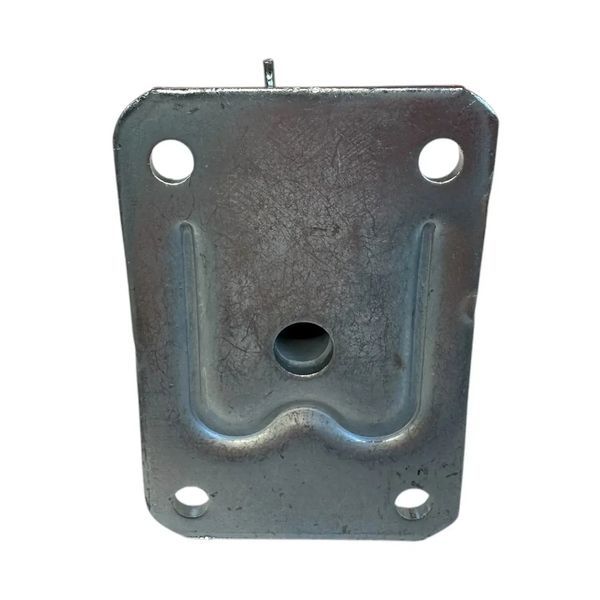

Spring clamp for formwork Chiroz 4 mm galvanized

Chiroz is a spring clamp for reinforcement, also known as a "frog clip", "frog lock" or spring clamp for formwork. It is designed for quick and reliable fixation of formwork panels without the use of tie bolts and nuts.

The reinforced version of the chiroza has a galvanized steel body, a stiff spring, an enlarged support platform and increased weight, which provides even greater stability and reliability during concreting. It can withstand loads of up to 3 tons and is suitable for reinforcement with a diameter of 6, 8 and 10 mm.

Characteristics:

• Type: spring clamp (chiroz)

• Weight: 0.341 kg

• Plate size: 100 × 68 mm

• Rebar diameter: 6–10 mm

• Plate thickness: 4 mm

• Tongue thickness: 5 mm

• Material: steel (galvanized)

• Load: up to 3 tons

Assembling:

1. Bring the reinforcement out through the formwork (approximately 15 cm).

2. Install the screw and tighten with a special wrench.

3. After dismantling the formwork, the reinforcement is cut off.

Advantages:

✔ Quick installation in one movement
✔ Reliable fixation without formwork displacement
✔ Reinforced design for high loads
✔ Reusable
✔ No screws or nuts required
✔ Corrosion resistance

Application:

• monolithic construction

• foundation works

• concreting of walls and columns

• formwork systems of any type
