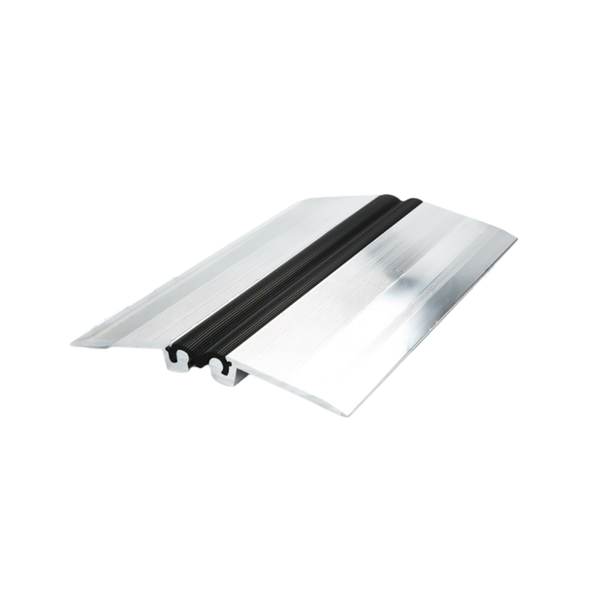

Overlay profile for expansion joint for parking lots AR 753-050, 4 linear meters.

Aluminum deformation profile AR 753-050 is a reliable solution for compensating for temperature and structural deformations in industrial and public buildings. The profiles consist of a durable aluminum body and an elastic rubber insert, which ensures tightness and durability.

Application:

floor, walls, ceiling;

floor-wall, wall-wall, wall-ceiling junctions;

floors made of tiles, polymer concrete, polyurethane coatings, decorative bulk systems;

rooms with intensive pedestrian or equipment traffic.

Advantages:

compensation of structural movements up to ±10 mm in three planes;

withstands loads of up to 9 tons (motor vehicles) and 5 tons (lifts);

mounted flush with the floor or wall surface;

profile length - 4 m;

black rubber insert provides aesthetics and resistance to abrasion.

Thanks to the hygienic and wear-resistant surface, the profiles are suitable for shopping centers, hospitals, warehouses, parking lots and production facilities.

Main characteristics:

Joint width: 50 mm

Profile height: 17 mm

Width of the visible part: 192 mm

Movement compensation: ±10 mm

Load: 9 t (car), 5 t (lift)

Length: 4 m
